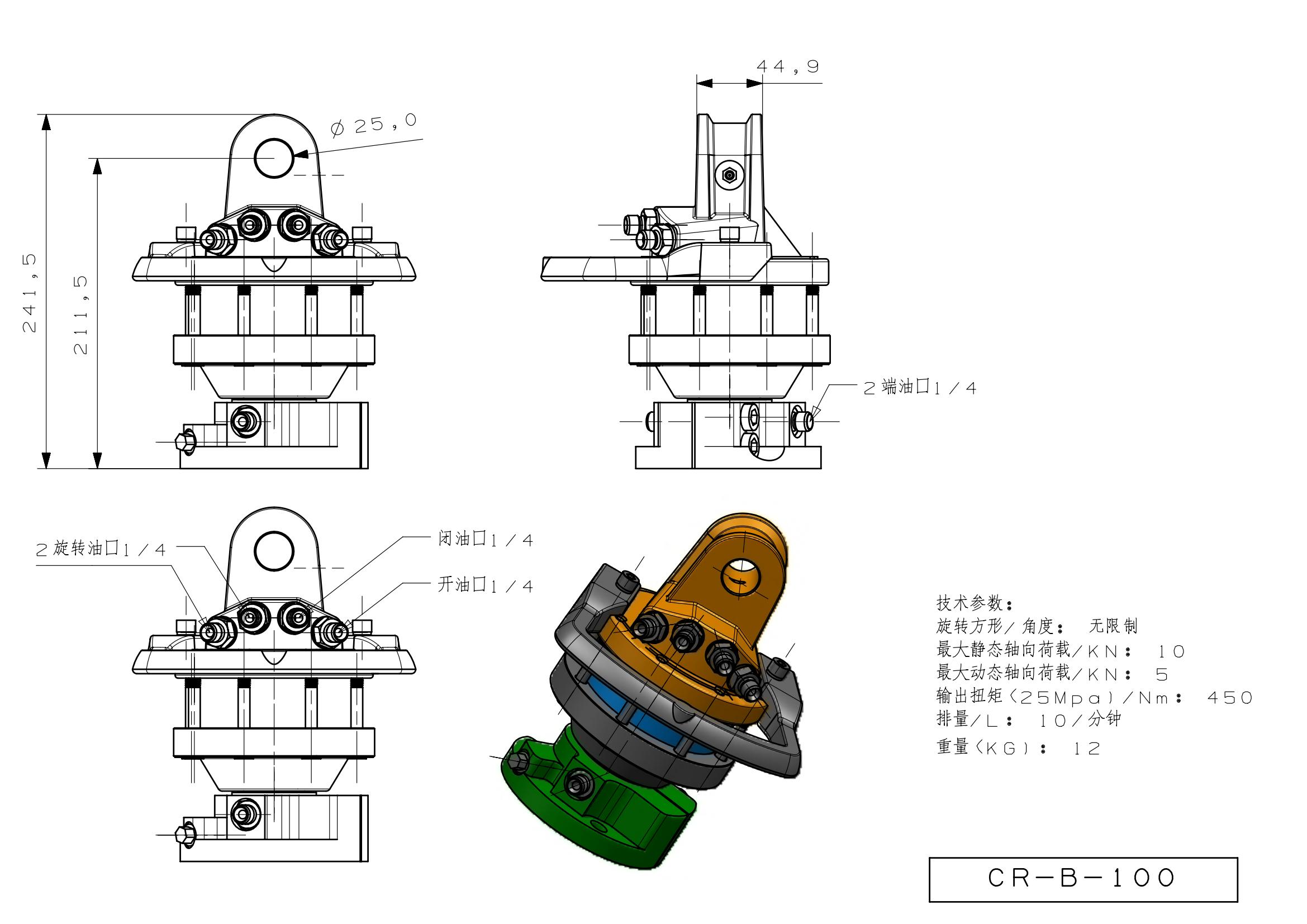

CR-B Series Rotator
| CR-B Serials | |||||||
| Technical specifications |
Rotation angle | unlimited° | |||||
| Max rotation pressure(R) | 250 bar | ||||||
| Max working pressure grapple open(GO) | 200-300 bar | ||||||
| Max working pressure grapple closed (GC) | 300 bar | ||||||
| Capacity | 193-810 cm³ | ||||||
| Torque(250 bar) | 450-2700 Nm | ||||||
| Max axial load (static) | 10-100 kN | ||||||
| Max axial load (dynamic) | 5-50 kN | ||||||
| Weight | 12-56 kg | ||||||
| Connections | G1/4″-G1/2″ | ||||||
| Connectors | BSP1/4″ JIC3/4-16 | ||||||
| Stud bolts | M8-M12 | ||||||
| Stud bolts tightening torque | 40-125 Nm | ||||||
| Maximum oil flow | 10-25 lpm | ||||||
