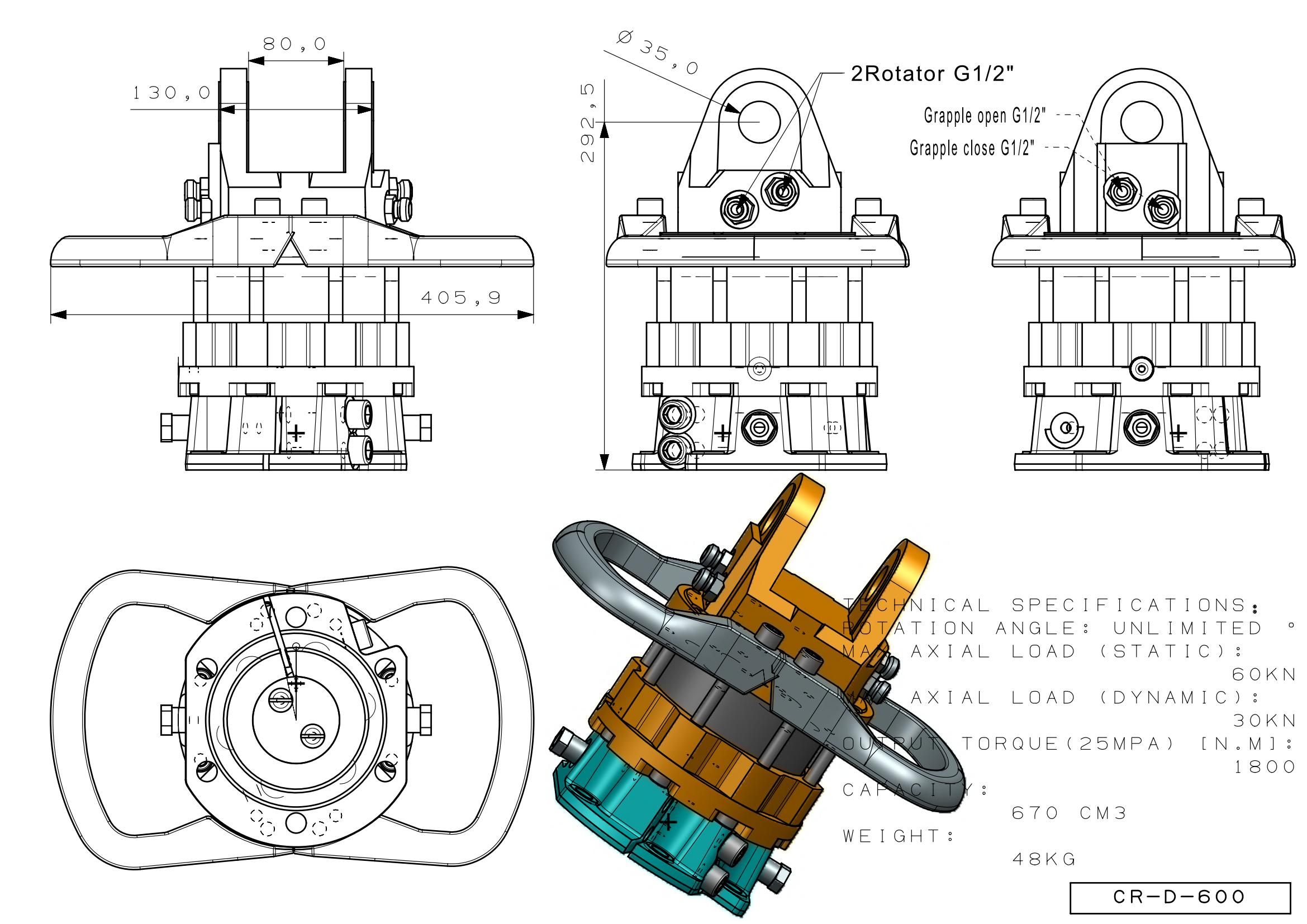

CR-D Series Rotator
| CR-D Serials | |||||||
| Technical specifications |
Rotation angle | unlimited° | |||||
| Max rotation pressure(R) | 250 bar | ||||||
| Max working pressure grapple open(GO) | 200-300 bar | ||||||
| Max working pressure grapple closed (GC) | 300 bar | ||||||
| Capacity | 670-810 cm³ | ||||||
| Torque(250 bar) | 1800-2700 Nm | ||||||
| Max axial load (static) | 60-100 kN | ||||||
| Max axial load (dynamic) | 30-50 kN | ||||||
| Weight | 48-56 kg | ||||||
| Connections | G1/2″ | ||||||
| Connectors | BSP1/2″ | ||||||
| Stud bolts | M12 | ||||||
| Stud bolts tightening torque | 125-660 Nm | ||||||
| Maximum oil flow | 20-25 lpm | ||||||
